A White-Box FFN: the Representer Theorem in JAX/Flax NNX

The explainer argued that a transformer’s feed-forward block, with a kernel in place of its activation, becomes a representer-theorem vote: out(x) = Σ_u k(W_u, x) v_u, a sum over learned (key, value) slots, the same equation as the attention beside it but over a fixed learned memory. That is not just elegant, it is a white box. This companion builds it in Flax NNX, trains it on tinyshakespeare, and then does four things to the FFN that are impossible when it is an opaque slab of ReLU. Every number is from a real run; the script is scripts/yat_ffn_whitebox.py.

Prefer a notebook? Run the whole thing on Kaggle: the same code, block by block, with the math written out, training the transformer live and reproducing every result above (it lands at the same val loss, 1.80).

The feed-forward block, rewritten as a memory#

A transformer FFN maps a token’s residual vector x ∈ ℝ^d to a vector it adds back to the stream, out(x) = W_2 σ(W_1 x). Replace the activation with the Yat kernel and the block stops being a slab. Each row of W_1 becomes a key W_u, a prototype direction; each column of W_2 becomes a value v_u, a vector written into the residual stream; and the output is a similarity-weighted sum of values:

That is the representer form, and it is exactly the attention equation Σ_j a_j v_j, except the memory {(W_u, v_u)} is learned and persistent instead of read from the context. The FFN is attention over a fixed key-value store (Geva et al.; Sukhbaatar et al.), and with a real Mercer kernel the store is a readable RKHS expansion.

import jax, jax.numpy as jnp
from flax import nnx

class YatFFN(nnx.Module):
    """The FFN as a key-value memory: out(x) = Σ_u k(W_u, x) v_u."""
    def __init__(s, d, ff, *, rngs, b0=0.5, eps0=1.0):
        s.W  = nnx.Param(jax.random.normal(rngs.params(), (ff, d)) * 0.02)   # [ff, d] keys W_u
        s.Vv = nnx.Param(jax.random.normal(rngs.params(), (d, ff)) * 0.02)   # [d, ff] values, v_u = Vv[:, u]
        s.log_b = nnx.Param(jnp.full((), jnp.log(jnp.expm1(b0))))
        s.log_eps = nnx.Param(jnp.full((), jnp.log(jnp.expm1(eps0))))
    def kernel(s, x):                                  # k(W_u, x): the memory weights [..., ff]
        b = jax.nn.softplus(s.log_b.value); eps = jax.nn.softplus(s.log_eps.value)
        dot = x @ s.W.value.T
        d2 = (x**2).sum(-1, keepdims=True) + (s.W.value**2).sum(-1) - 2 * dot
        return (dot + b)**2 / (d2 + eps)
    def __call__(s, x):
        return s.kernel(x) @ s.Vv.value.T              # Σ_u k(W_u, x) v_u

Drop that into a standard pre-LN block (causal attention, then this FFN) and train a small char-level language model on tinyshakespeare: 3 layers, d=128, 256 memory slots per block. It reaches a validation loss of 1.80, an ordinary little transformer (the script trains no ReLU twin, so read that number as the model’s stated operating point rather than a comparison). The point is not its quality; it is that its feed-forward memory is now legible. The two arrays you read it from are the keys and values, nothing else:

ffn   = model.blocks[-1].ffn
keys  = ffn.W.value     # [ff, d]  the prototype directions W_u
vals  = ffn.Vv.value    # [d, ff]  the value vectors, v_u = vals[:, u]
U     = model.head.kernel.value   # [d, vocab]  the unembedding; U[:, t] reads token t

1. Read the memory#

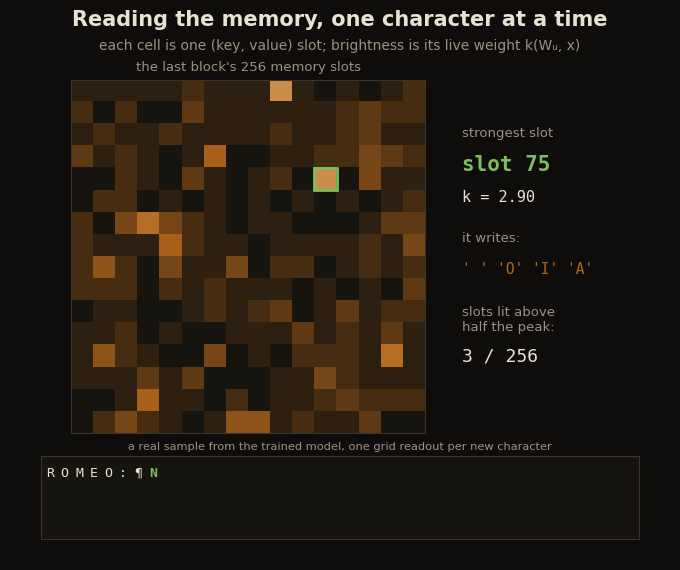

Because each slot writes a fixed vector v_u into the residual stream, you can ask what it writes by decoding v_u through the unembedding, the logit lens. Every slot gets a human-readable label:

def writes(u, k=6):                                    # the tokens slot u promotes
    return [itos[i] for i in (vals[:, u] @ U).argsort()[::-1][:k]]

# slot 198  writes: ['L', 'P', 'N', 'M', 'R', 'I']     a capital-letter / line-start slot
# slot 145  writes: [' ', 's', '\n', '-', 'd', 'T']    a word- and line-boundary slot
# slot 248  writes: ['\n', '3', 'm', 'k', 'e']         the newline slot

Geva et al. found this kind of structure heuristically inside ReLU FFNs. Here it is not a heuristic: the slot’s contribution is literally k(W_u, x) v_u, so v_u is exactly what it adds, and its decoding is exactly what it promotes.

2. Attribute an output to its slots#

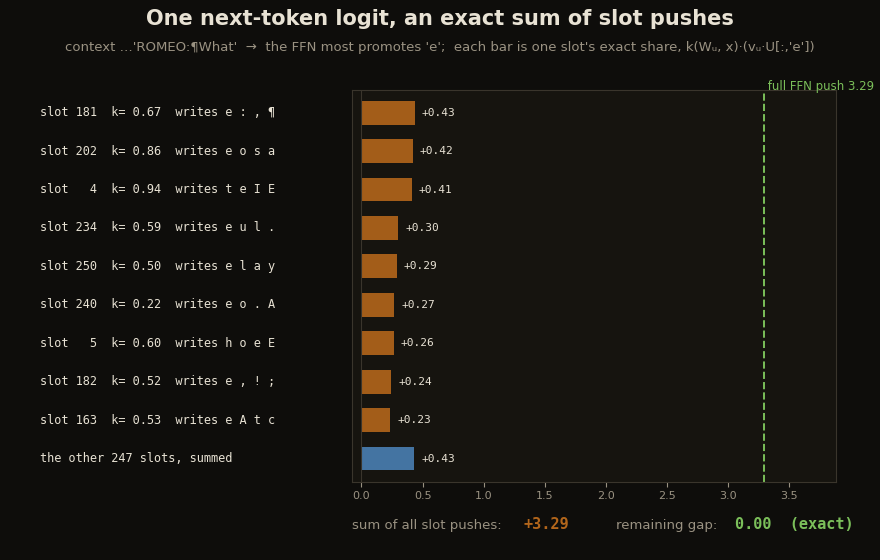

The FFN output is a sum, so any output decomposes, with no gradients and no approximation, into the slots that produced it. Take a context, compute each slot’s push toward the predicted next token, and rank:

x  = residual_into_ffn(model, encode("ROMEO:\nWhat"), layer=-1)[0, -1]  # the FFN's input
kw = ffn.kernel(x[None])[0]                             # k(W_u, x), the memory weights
out = kw @ vals.T                                       # the FFN output
nxt = (U.T @ out).argmax()                              # most-promoted next char
push = kw * (vals.T @ U[:, nxt])                        # each slot's signed push toward it

# the FFN most promotes next-char 'e'
# reconstruction error |Σ_u k_u v_u - out| = 0.00e+00   <- it IS the sum, exactly
#   slot 181  k=0.67  push=+0.43  writes ['e', ':', ',', '\n']
#   slot 202  k=0.86  push=+0.42  writes ['e', 'o', 's', 'a']
#   slot   4  k=0.94  push=+0.41  writes ['t', 'e', 'I', 'E']

The reconstruction error is exactly zero because the decomposition is not a story laid over the block, it is the block’s arithmetic. This is what “white box” means here: the explanation and the computation are the same object.

3. Edit one slot and watch the output change#

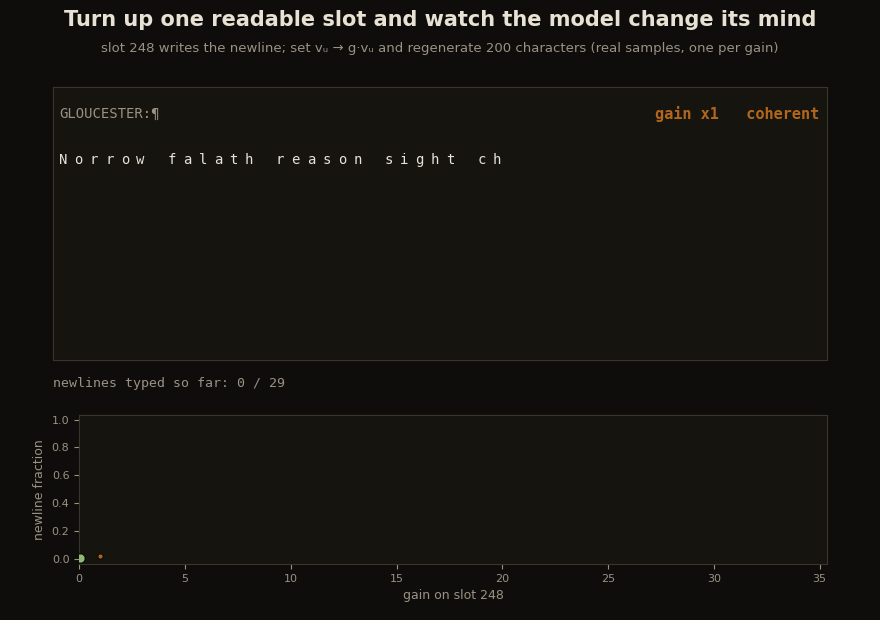

If a slot writes a known token, you can turn it up. Multiply one value vector v_u by a gain and regenerate: nothing else in the model touched, and the change is predictable in closed form because the output is linear in k(W_u, x).

def amplify(model, u, g, layer=-1):                    # v_u  ->  g * v_u
    v = model.blocks[layer].ffn.Vv
    nv = np.asarray(v.value); nv[:, u] *= g; v.value = jnp.asarray(nv)

# slot 248 is the newline-writer. Generate from "GLOUCESTER:\n":
#   gain x1   ->   4 newlines:  "He my deak not name! The sir, in my g..."   (coherent)
#   gain x12  ->  13 newlines:  "He my deak not name!\n\nBENVOLIO:\nThe sir..."  (choppy)
#   gain x30  -> 200 newlines:  "\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n..."             (only newlines)

Sweep the gain and the effect is a clean phase transition: below a threshold the text stays coherent, then the one slot floods the residual stream and the model writes nothing but what that slot says. This is white-box model surgery, an edit to a single readable memory cell, and you predicted the result from its label before running it.

4. Read off when the memory is out of its depth#

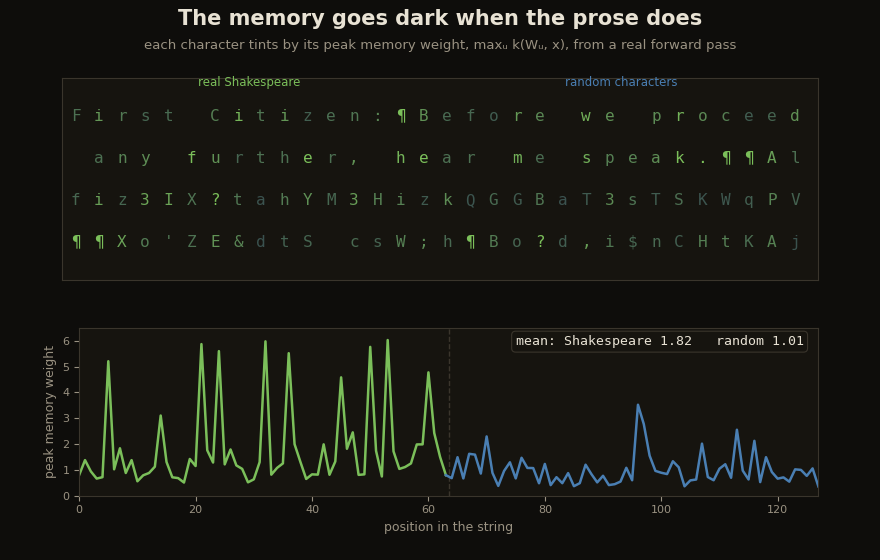

The Yat kernel is local and bounded: k(W_u, x) is large only when x is near and aligned with key W_u, and small everywhere else. So a token unlike anything the memory learned lights up no slot, and the FFN writes almost nothing. The kernel weights are an out-of-distribution signal you can read directly off the forward pass.

def peak_weight(seq):                                  # max_u k(W_u, x) at each token
    x = residual_into_ffn(model, seq, layer=-1)[0]
    return ffn.kernel(x).max(-1)

# peak memory weight, averaged over tokens:
#   real Shakespeare (in-distribution)  2.12
#   random characters                   0.96
#   a repeated character                0.77

Real prose excites the memory two to three times more strongly than off-distribution input. The block does not need a separate detector for “I have not seen this”; the representer weights already say so, because a kernel reports how much each reference counts, out loud, and when nothing counts it tells you.

The point#

None of these four are tricks specific to a toy. They follow from one fact: a Yat FFN’s output is Σ_u k(W_u, x) v_u, the representer form, so the block is a key-value memory whose slots you can read, whose outputs you can attribute exactly, whose cells you can edit one at a time, and whose confidence you can measure from the kernel weights. The opaque half of the transformer was never doomed to be opaque. Give its feed-forward block a kernel, and it becomes a memory you can open, the same way the representer theorem promised and the attention beside it already was.

Feed-forward layers as key-value memories is Geva et al. (2021); the FFN-as-persistent-memory equivalence is Sukhbaatar et al. (2019); the representer theorem is Schölkopf, Herbrich and Smola (2001); the Yat kernel is Bouhsine (2026). The conceptual companion is The MLP Block Is a Representer Theorem.
